Centerless Grinder Control Retrofits

Price: Call for Quote
SKU:
centerless-grinder-main

Engineered to make your job easier.

With a MachMotion grinder control package you get:

  • MachMotion's superior support FREE for the life of the control

  • High performance, closed-loop DSP Ethernet motion controller

  • 100% US-based manufacturing, sales, service, and support

Breathe New Life Into Your Machine

We install new CNC conrols and electronics, including:

  • New CNC control and HMI

  • Servo drives, motor, and cabling

  • Grind wheel VFD "spindle drive"

  • Pre-built bolt-on electrical enclosure

How can we help?

Call me at (573) 368-7399 or enter your name and number here and I'll call you.

                                                                                           ~Matt S., Sales Engineer

Description

6 Axis Centerless Grinder Control w/ Coordinated Profile Dressing

  • Retrofits and upgrade options from 1 to 6 Axis control
  • Know you have the flexibility in your control system to grind any shape
  • Capable of coordinated motion on both grind and reg wheel dressers, dress any shape into the wheels
  • Servo controlled lower and upper slides
6 Axis Centerless Grinder Control w/ Coordinated Profile Dressing

Turnkey Options to Meet Your Needs

Turnkey Options to Meet Your Needs

  • Onsite Retrofits: Our team will come to your facility, power down the machine, install a new CNC controller, and provide training
  • Ship Your Machine to MachMotion: We'll arrange shipment of your machine, send it back complete retrofitted, and come onsite to provide power-up and training
  • Need a Full Machine Rebuild? We have a network of qualified rebuilders that can bring your machine back to new, factory tolerances. Schedule a machine health check to decide if your grinder is worth putting money into

Customer Examples

Micron Centerless Grinder Control Retrofit
Micron Centerless Grinder Control Retrofit
Micron Centerless Grinder Reg Wheel Dresser
Micron Centerless Grinder Reg Wheel Dresser

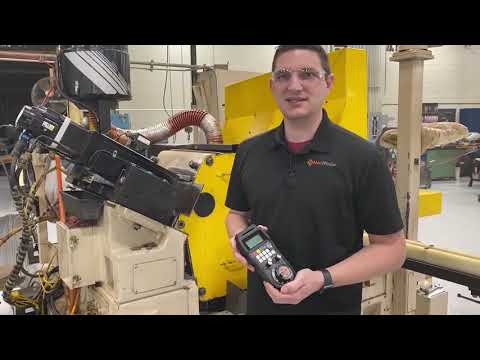

Micron Centerless Grinder Control Retrofit w/ Wireless Pendant
Micron Centerless Grinder Control Retrofit w/ Wireless Pendant
CNC Cincinnati Milacron Centerless Grinder
CNC Cincinnati Milacron Centerless Grinder
Centerless Cincinnati Milacron Grinder Controller Upgrade
Centerless Cincinnati Milacron Grinder Controller Upgrade
CNC Centerless Grinder Retrofit with MachMotion Contro
CNC Centerless Grinder Retrofit with MachMotion Contro
Centerless Cincinnati Milacron Grinder Controller Upgrad
Centerless Cincinnati Milacron Grinder Controller Upgrad
Centerless Cincinnati Milacron Grinder Controller Upgrade
Centerless Cincinnati Milacron Grinder Controller Upgrade
Centerless Cincinnati Milacron Grinder Controller Upgrade
Centerless Cincinnati Milacron Grinder Controller Upgrade

More Examples

More Information

Do you have MAN POWER SHORTAGE?

  • Stay competitive by installing a collaborative robot
  • Robots rarely call in sick and leave you behind in your orders
  • Easy to program and incredibly precise
  • MachMotion offers turnkey installation
Do you have MAN POWER SHORTAGE?
Join us in the 21st Century of CNC controls

Join us in the 21st Century of CNC controls

  • Large 21" screen with advanced graphics makes it easy to view your part tool path
  • No multi-layer menu system
  • Windows-style navigation

Are you wasting time with poor navigation?

  • Poor navigation is time-consuming and makes training difficult
  • With MachMotion you get Windows-style navigation that's self-explanatory - You get it without reading a manual
  • With big "Name Brand" PLC-based controls you have to go 4-6 layers deep to change the grind settings - With MachMotion you will never feel lost again
Are you wasting time with poor navigation?
Both In-feed / Thru-Feed Operation Available

Both In-feed / Thru-Feed Operation Available

  • One-Touch Grind Compensation button makes it easy to keep your parts within tolerance
  • Infeed Visual Grind-Cycle indictor - Since grinding moves so slowly, visually see what stage the grind cycle is in
  • Control interface is easy to switch between infeed and thru-feed operation

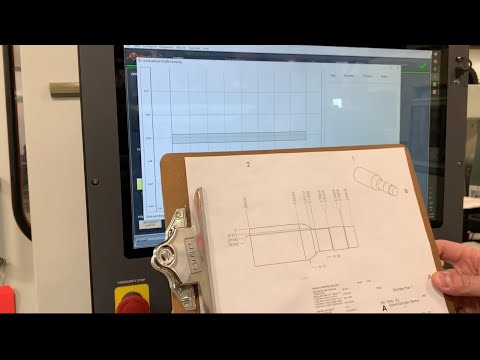

Grind & Reg Wheel Profile Dressing

  • Comp grind position on dressing - Allows for going right back to grinding
  • Automatically dress after a defined # of parts (infeed )
  • Single button, on-demand dressing
  • 2 Axis coordinated profile dress with standard G-code
Grind & Reg Wheel Profile Dressing

Free Control Support Included

Free Control Support Included

  • No charge for control support
  • Remote login service included; we can see what you see
  • Non-transferrable
  • One year warranty on all parts

Why MachMotion?

  • Customer service and support is priority #1
  • Direct seller; we're your single source for sales and support, no middle man
  • US-based manufacturing, sales, service, and support
  • Call us and speak to a live person, M-F 8-5pm (Central)
Why MachMotion?

Common CNC Centerless Grinder Controls and Machines MachMotion has Helped Retrofit/Upgrade:

  • Cincinnati Milacron, Cincinnati, Gold Crown, Micron, Van Norman, Viking

Customizable open architecture software options are available. Call us to discuss your application.

Are you an OEM or custom machine builder? Ask about MachMotion's configurable operator screen, multi-named buttons, and graphic layout to give the operator a customized user-friendly experience. In addition, we offer branding integration on the screen.

Product Details
Show All

More Information
Control Series 2150G
Screen Size 21" LCD Monitor
Program Storage (Solid State HD) 128GB
Block Processing Time 1.5ms
Axis Supported 6 & 1 Spindle
Outputs 8
Spindle Relay Outputs 2
Spindle Analog Output 1
CNC Control Size 24" (W) X 15.5" (H) X 6.5" (D)
Operating System Windows 7 Embedded (Win 7 Pro equivalent)
Power Requirements 110-240 VAC operation
Ethernet Connect to your network and easily transfer files from the office to your computer
USB Ports 1 External USB Port + 1 Internal
Operator Panel X15-10-01 Operator Panel, with Jog Buttons, Axis Selector, Increment Selector, Jog Speed Selector, Cycle Start, Feed-hold and Emergency Stop Buttons.
Digital Outputs 8 Flood/Mist, Coolant, Lamp, etc.
Digital Output Voltage Range 5V-24VDC
Digital Inputs 16 Example: X, Y, & Z Limit Switches, Oilier Refill Warning, etc.
Digital Input Voltage Range 2.5V-48VDC
Safety Features Opto-isolated I/O & Hardwired E-Stop
Encoder Inputs 6 Differential Quadrature Encoder Inputs. 32-Bit Resolution
