CNC Waterjet Machine Control Retrofit & Upgrade Kits

Price: $14,482.21
SKU:
KT-250W-Main

Engineered to make your job easier.

With a MachMotion waterjet control package you get:

  • MachMotion's superior support FREE for the life of the control

  • High performance, closed-loop DSP Ethernet motion controller

  • 100% US-based manufacturing, sales, service, and support

Waterjet Control Retrofits Teco Servos start at $14,482.21.   Download Brochure

Waterjet Control Retrofits Yaskawa Servos - Call for quote.   Download Brochure

Compare below.

Contact Us

Description

Industrial Motion Control

  • Large 17" display showing real-time, virtual cut path
  • Rugged steel control enclosure; dust/liquid resistant
  • Precision closed-loop, DSP Ethernet motion controller
  • Perfect for industrial manufacturing, job shops, etc...
Industrial Motion Control
Control Software Features

Control Software Features

  • Easy to use Windows-style one page navigation Learn more...
  • Cut Recovery: Start anywhere, pick line or step through the program
  • User configurable, high/low pressure jet, garnet on/off, pump on/off, etc...
  • Comes standard with DXF import (manual nesting before importing)
  • Programmable Z axis height, Z axis retracts between pierces

Gantry Drive Systems

  • Gantry slaving mode - single or dual drive gantries
  • Automatic gantry squaring- precision home to nearest encoder index pulse
  • Ball screw driven machines - flying bridge or gantry style
  • Rack/pinion driven machines - servos and precision gear boxes for 400LB, 900LB, 1800LB and larger gantries
Gantry Drive Systems
Optional  Part Nesting

Optional Part Nesting

  • SigmaNEST, TRUE SHAPE NESTING software
  • DXF/DWG CAD drawing import
  • 190 standard part shape library
  • Material library tech tables, also known as cut charts
  • Automatically places lead-in/lead-out points (easy to edit, if needed)

Options

  • Ready to bolt on, pre-wired enclosure for your system
  • Free Standing Control Stand
  • Wi-Fi ready
  • Touch Screen
  • MPG Pendant
Options
AC Servo Motor Options

AC Servo Motor Options

  • High resolution AC servo system - Precision hole and corner path control
  • Yaskawa servos with 20bit encoder
  • Teco servos with 10k count encoder (We are the North American distributor for Teco servo products)

Easy to Install/Operate

  • MachMotion turnkey installation services, Guaranteed Power-up available
  • Install yourself or use MachMotion's qualified technicians
  • One-time setup; Easily backup machine configuration
  • Part File Import; Network access via Ethernet to offices/other departments
Easy to Install/Operate
FREE Control Support Included

FREE Control Support Included

  • No charge for control support
  • Remote login service included; we can see what you see
  • Non-transferable
  • One year warranty on all parts

Our Guarantee

  • Customer service and support is priority #1
  • Direct seller; we're your single source for sales and support, no middle man
  • US-based manufacturing, sales, service, and support
  • Call us and speak to a live person, M-F 8-5pm (Central)
Our Guarantee

Customer Examples

2001 Flow WaterJet Control Retrofit
2001 Flow WaterJet Control Retrofit
Flow Flying Bridge CNC Waterjet Machine with Control Stand
Flow Flying Bridge CNC Waterjet Machine with Control Stand
Flow 3 Axis Industrail Eletrical Enclosure
Flow 3 Axis Industrail Eletrical Enclosure
A V CNC WaterJet Cutting-Control System Retrofit MachMotion
A V CNC WaterJet Cutting-Control System Retrofit MachMotion
A V CNC WaterJet Cutting System Control upgrade-MachMotion
A V CNC WaterJet Cutting System Control upgrade-MachMotion
Large CNC Gantry WaterJet Control Retrofit MachMotion
Large CNC Gantry WaterJet Control Retrofit MachMotion
4X5 2 Head CNC WaterJet Retrofit
4X5 2 Head CNC WaterJet Retrofit
CNC WaterJet Control-System Retrofit Teco Servos
CNC WaterJet Control-System Retrofit Teco Servos
Snow Hill Enginnerring Industral Waterjet with MachMotion Controller
Snow Hill Enginnerring Industral Waterjet with MachMotion Controller
Granite Stone Cutting with WaterJet
Granite Stone Cutting with WaterJet
WaterJet Stone Cutting
WaterJet Stone Cutting
WaterJet Cutting 20GA Steel Sheet
WaterJet Cutting 20GA Steel Sheet

More Examples

Videos

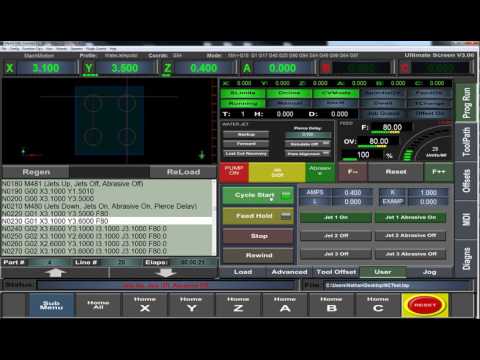

MachMotion Waterjet Control Demo - No Audio

Compare Options

Control System Comparison

Waterjet Control Retrofits Teco Servos
Waterjet Control Retrofits Teco Servos
Waterjet Control Retrofits Yaskawa Servos
Waterjet Control Retrofits Yaskawa Servos
Kit Model Number 0250W-X4-4443-0300 0250W-X4-4443-0300
Control Series 250W 250WT
Screen Size 17" LCD Monitor 17" LCD Monitor
Touch Screen No Yes
Program Storage (Solid State HD) 64GB 64GB
Processor Intel Celeron 2.00 GHz Intel Celeron 2.00 GHz
Sigma Nest TRUE SHAPE NESTING Included No Yes
Basic DXF Import Yes Yes
Control Mechanical Mounting Rear Mounting Arm Free Standing Control Stand
Axis Supported 4 Axis 4 Axis
Servo Motors Included (# Axis) Teco(3) Yaskawa(3)
Default Servo Size 400W 1.24NM 750W 2.39NM
Servo Encoder Resolution 10,000 Counts per rev 1,000,000 Counts per rev
Main Power Voltage 230V 3 Phase 230V 3 Phase
Gear boxes (Rack Pinion Drive) APEX PAII060-030 30/1 N/A
Gantry Weight (Rack Pinion Drive) 400 LB Mass Per Servo N/A
Ball Screw Drive System Optional Servos Ball screw
Inputs 16 16
Outputs 8 8
High/Low Jet Pierce Relay 2 2
Pre-wired electrical enclosure included 30 X 30 X 12 30 X 30 X 12
1 year warranty on parts Yes Yes
Lifetime Technical Support Yes Yes
Remote support via the internet Yes Yes
Estimated Installation Call for Quote Call for Quote
Normal Stock item Avg lead time 3 Week Avg lead time 3 Week
Starting At:$14,482.21 Call for Quote
Brochure Brochure

Common CNC Waterjet Machines MachMotion has Helped Retrofit/Upgrade:

  • CNC Controls: Allen Bradley, Fagor, Siemens, Osai, Centroid, Ward, ESAB,
  • CNC WaterJet Upgrades/Retrofits: Flow, Omax, Caylpso, JetEdge, MultiCam, Knuth,TECHNI, A&V Waterjet, KMT, and many more.

Customizable open architecture software options are available. Call us to discuss your application.

Are you an OEM or custom machine builder? Ask about MachMotion's configurable operator screen, multi-named buttons, and graphic layout to give the operator customized user friendly experience. In addition we offer branding integration in the screen.

Product Details
Show All

More Information
Control Series 1050WJ
Screen Size 17" LCD Monitor
Program Storage (Solid State HD) 64GB
Axis Supported 6 & 1 Analog Out
Outputs 8
CNC Control Size 24" (W) X 15.5" (H) X 6.5" (D)
Operating System Windows 7
Power Requirements 110-240 VAC operation
Ethernet Connect to your network and easily transfer files from the office to your computer
USB Ports 1 External USB Port + 1 Internal
Operator Panel X15-10-01 Operator Panel, with Jog Buttons, Axis Selector, Increment Selector, Jog Speed Selector, Cycle Start, Feed-hold and Emergency Stop Buttons.
Digital Outputs 8 Flood/Mist, Coolant, Lamp, etc.
Digital Output Voltage Range 5V-24VDC
Digital Inputs 16 Example: X, Y, & Z Limit Switches, Oilier Refill Warning, etc.
Digital Input Voltage Range 2.5V-48VDC
Safety Features Opto-isolated I/O & Hardwired E-Stop
Encoder Inputs 6 Differential Quadrature Encoder Inputs. 32-Bit Resolution
