CNC Plasma & Oxy Fuel Table Control Retrofit & Upgrade Kits

Price: $12,421.43
SKU:
KT-1050P-X5-Main

Engineered to make your job easier.

With a MachMotion plasma control package you get:

  • MachMotion's superior support FREE for the life of the control

  • High performance, closed-loop DSP Ethernet motion controller

  • 100% US-based manufacturing, sales, service, and support

CNC Plasma with roller head (HVAC) starts at $12,421.43.  Download Brochure

CNC Oxy control (no THC) - Call for quote.   Download Brochure

CNC Plasma with THC and Oxy control starts at $20,394.02.  Download Brochure

Compare below.

Contact Us

Description

Industrial Motion Control

  • Large 17" touch screen for displaying part-shape-path
  • Rugged control enclosure; dust/liquid resistant
  • Closed-loop, DSP Ethernet motion controller
  • Perfect for industrial fabrication, HVAC job shops, etc…
Industrial Motion Control
Control Software Features

Control Software Features

  • Easy to use Windows-style one page navigation Learn more...
  • Intuitive Cut Recovery: part cut recovery/trace, Pick-Part-Cut
  • Intuitive RIP CUT using joystick
  • Comes standard with DXF import (manual nesting before importing)
  • Learn More…

Optional Part Nesting

  • SigmaNEST, TRUE SHAPE NESTING software
  • DXF/DWG CAD drawing import
  • 190 standard part shape library
  • Material library tech tables, also known as cut charts
  • Automatically places lead-in/lead-out points (easy to edit, if needed)
Optional  Part Nesting
Plate Alignment - Laser Pointer

Plate Alignment - Laser Pointer

  • Control operated laser pointer
  • Find edge or corner of plate and set X, Y Zero Point or start pierce
  • Simple 3-step process for controller to automatically align sheet to the gantry in the software
  • Set zero start points for any active tools: plasma, oxy fuel torch, drills, scribes, center punch

Cutting Torch Types

  • Plasma - Digital automatic Torch Height Control (THC)
  • Plasma - Roller-head used in the HVAC industry
  • Oxy-Fuel - Multiple torches for plate cutting
  • Standard user interface when using drill, auto drill tool changer, center punch, laser pointer
Cutting Torch Types
Gantry Drive Systems

Gantry Drive Systems

  • Gantry slaving mode - single or dual drive gantry's
  • Automatic gantry squaring when homing
  • Servos and precision gear boxes for 400LB, 900LB, 1800LB and larger gantries

Options

  • Ready to bolt on, pre-wired enclosure for your system
  • Free Standing Control Stand
  • Wi-Fi ready
  • Touch Screen
Options
AC Servo Motor Options

AC Servo Motor Options

  • High Resolution AC Servo System - Precision HOLE and Corner path control
  • Yaskawa servos with 20bit encoder
  • Teco servos with 10k count encoder (We are the North American distributor for Teco servo products)

Easy to Install/Operate

  • MachMotion turnkey installation services, Guaranteed Power-up available
  • Install yourself or use MachMotion's qualified technicians
  • One-time setup; Easily backup machine configuration
  • Part File Import; Network access via Ethernet to offices/other departments
Easy to Install/Operate
FREE Control Support Included

FREE Control Support Included

  • No charge for control support
  • Remote login service included; we can see what you see
  • Non-transferable
  • One year warranty on all parts

Our Guarantee

  • Customer service and support is priority #1
  • Direct seller; we're your single source for sales and support, no middle man
  • US-based manufacturing, sales, service, and support
  • Call us and speak to a live person, M-F 8-5 pm (Central)
Our Guarantee

Customer Examples

ESAB Avenger 1 8 Oxy Fuel Plasma Control System Retrofit
ESAB Avenger 1 8 Oxy Fuel Plasma Control System Retrofit
ESAB Avenger with MachMotion Industral Eletrical Enclosure Mounted to Gantry
ESAB Avenger with MachMotion Industral Eletrical Enclosure Mounted to Gantry
MachMotion Plasma Controller with AUTO PART NESTING
MachMotion Plasma Controller with AUTO PART NESTING
OEM Built Gantry Plasma Cutting over water table with a MachMotion Control
OEM Built Gantry Plasma Cutting over water table with a MachMotion Control
MachMotion Controller Thermal Dynamics Ultra-Cut 400XT High Definition Auto GAS
MachMotion Controller Thermal Dynamics Ultra-Cut 400XT High Definition Auto GAS
2 in. Think Steel Plate Cut with Thermal Dynamics
2 in. Think Steel Plate Cut with Thermal Dynamics
FARLEY CNC Plasma Retrofit MachMotion Control
FARLEY CNC Plasma Retrofit MachMotion Control
FARLEY Plasma Retrofit new Cnc Controller
FARLEY Plasma Retrofit new Cnc Controller
FARLY Plasma Oxy Fuel Control Upgrade
FARLY Plasma Oxy Fuel Control Upgrade
KOIKE ARONSON Plasma Table Control Retrofit
KOIKE ARONSON Plasma Table Control Retrofit
KOIKE ARONSON Control Retrofit New AC Servos THC CNC Controller
KOIKE ARONSON Control Retrofit New AC Servos THC CNC Controller
KOIKE AROSON Retrofit MachMotion Iudustral Drive Enclosure Thermal Dynamics Power Supply
KOIKE AROSON Retrofit MachMotion Iudustral Drive Enclosure Thermal Dynamics Power Supply
New OEM Built Plasma Table with MachMotion Controller Hypertherm Power Max Plasm Torch
New OEM Built Plasma Table with MachMotion Controller Hypertherm Power Max Plasm Torch
New OEM Built for Dual Drive Gantry with MachMotion THC Control
New OEM Built for Dual Drive Gantry with MachMotion THC Control
OPTIONAL Control Featrues Drills Independant Oxy Fuel Servo Oxy Fuel Oxy Mounted to the same slide as Plasma Torch Scibe Laser pointer 2
OPTIONAL Control Featrues Drills Independant Oxy Fuel Servo Oxy Fuel Oxy Mounted to the same slide as Plasma Torch Scibe Laser pointer 2

More Examples

Videos

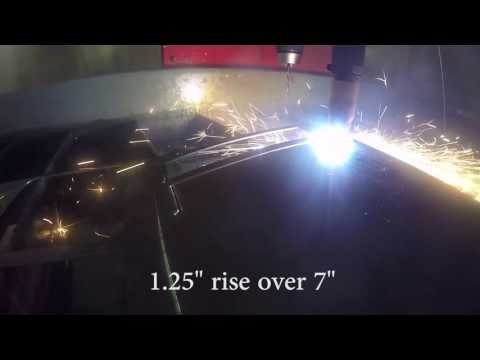

THC Control & Integrated SigmaNEST

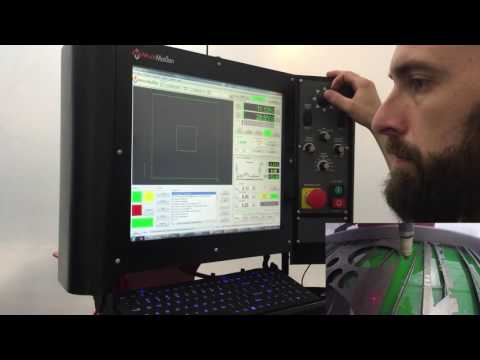

THC Demo

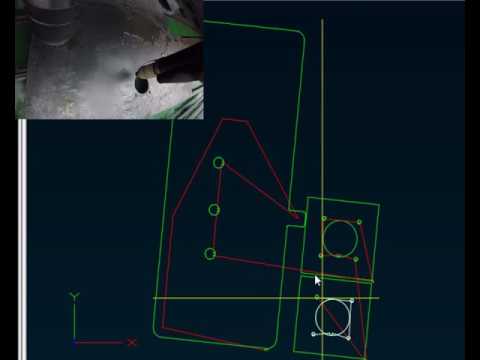

SigmaNEST Shape Library to Cut a Part on a MachMotion 1150P Plasma THC Control

Compare Options

Control System Comparison

Plasma Control Retrofits No Auto THC
Plasma Control Retrofits No Auto THC
Plasma Control Retrofits Oxy-Fuel Only
Plasma Control Retrofits Oxy-Fuel Only
Plasma Control Retrofits THC + 1 OXY-Fuel
Plasma Control Retrofits THC + 1 OXY-Fuel
Kit Model Number KT-1050P KT-1050F KT-1150P
Control Series 1050P 1050F 1150P
Screen Size 17" LCD Monitor 17" LCD Monitor 17" LCD Monitor
Touch Screen Yes Yes Yes
Program Storage (Solid State HD) 64GB 64GB 64GB
Processor Intel 2.0 GHZ Intel 2.0 GHZ Intel 3.9 GHZ
Sigma Nest TRUE SHAPE NESTING Included No Yes Yes
Basic DXF Import Yes Yes Yes
Control Mechanical Mounting Rear Mounting Arm Top Mount Arm Top Mount Arm
Axis Supported 4 Axis 4 Axis 4 Axis + Drill
Servo Motors Included (# Axis) Teco(3) Teco(3) Teco(3 + THC)
Default Servo Size 400W 1.24 NM 750W 2.4NM 750W 2.4NM
Servo Encoder Resolution 10,000 Counts per rev 10,000 Counts per rev 10,000 Counts per rev
Main Power Voltage 230 Volt 3 Phase 230 Volt 3 Phase 230 Volt 3 Phase
Gear boxes (Rack Pinion Drive) APEX PAII060-030 30/1 APEX PAII060-020 20/1 APEX PAII060-020 20/1
Gantry Weight (Rack Pinion Drive) 400LB Mass Per Servo 900LB Mass Per Servo 900LB Mass Per Servo
Automatic Torch Control (THC) No No Yes
Ohmic/Torque (IHS) Initial Height Sense No No Yes
Oxy- Fuel Torches I/O Module No Yes No
Torch Lifter Slide No Optional 5" Torch travel, 50 Lb Load
Servo Oxy-Fuel Torches No No Yes
Inputs 16 16 16
Outputs 8 X Drill, Center Punch, Laser Pointer 8 X Drill, Center Punch, Laser Pointer 8 X Drill, Center Punch, Laser Pointer
Spindle Relay Outputs 2 Drill 2 Drill 2 Drill
Analog Outputs 1 Drill 1 Drill 1 Drill
Pre-wired electrical enclosure included 24 X 36 X 12 24 X 40 X 12 24 X 40 X 12
1 year warranty on parts Yes Yes Yes
Lifetime Technical Support Yes Yes Yes
Remote support via the internet Yes Yes Yes
Estimated Installation Call for Quote Call for Quote Call for Quote
Normal Stock item Avg lead time 2 Weeks Avg lead time 3 Weeks Avg lead time 3 Weeks
Starting At:$12,421.43 Call for Quote $20,394.02
Brochure Brochure Brochure

Common CNC Plasma Tables MachMotion has Helped Retrofit/Upgrade:

  • CNC Controls: Burny, ESAB, Hypertherm, Dynatorch.
  • CNC Plasma Table Upgrades/Retrofits: Koike Aronson, Lockformer, Farley, Vulcan, MG Systems, Acroloc, C&G Systems, Messer, Titan, and many more. Call us today.

Our plasma kits are preconfigured with the most common options and parts you need for retrofitting a plasma:

You can customize these kits to best fit your needs by changing the type of control, the number of your motors and drives, and the size of your motors and drives to whatever you need.
You can also add a drive enclosure or gearboxes among many other options.

Customizable open architecture software options are available. Call us to discuss your application.

Are you an OEM or custom machine builder? Ask about MachMotion's configurable operator screen, multi-named buttons, and graphic layout to give the operator customized user friendly experience. In addition we offer branding integration in the screen.

Product Details
Show All

More Information
Control Series 1050P
Screen Size 17" LCD Monitor
Program Storage (Solid State HD) 64GB
Axis Supported 4 Axis
Servo Oxy-Fuel Torches No
Outputs 8 X Drill, Center Punch, Laser Pointer
Spindle Relay Outputs 2 Drill
Analog Outputs 1 Drill
CNC Control Size 24" (W) X 15.5" (H) X 6.5" (D)
Operating System Windows 7 Embedded (Win 7 Pro equivalent)
Power Requirements 110-240 VAC operation
Ethernet Connect to your network and easily transfer files from the office to your computer
USB Ports 1 External USB Port + 1 Internal
Operator Panel X15-10-01 Operator Panel, with Jog Buttons, Axis Selector, Increment Selector, Jog Speed Selector, Cycle Start, Feed-hold and Emergency Stop Buttons.
Digital Outputs 8 Flood/Mist, Coolant, Lamp, etc.
Digital Output Voltage Range 5V-24VDC
Digital Inputs 16 Example: X, Y, & Z Limit Switches, Oilier Refill Warning, etc.
Digital Input Voltage Range 2.5V-48VDC
Safety Features Opto-isolated I/O & Hardwired E-Stop
Encoder Inputs 6 Differential Quadrature Encoder Inputs. 32-Bit Resolution
