CNC Turning Machine Control Retrofit & Lathe Upgrade Kits
Price:
$9,226.87
SKU:
KT-1150T-X4-MPT-Main
Engineered to make your job easier.
With a MachMotion turning control package you get:
-
MachMotion's superior support FREE for the life of the control
-
High performance, closed-loop DSP Ethernet motion controller
-
100% US-based manufacturing, sales, service, and support
Standard tool room lathe with manual tool post starts at
$9,226.87.
Lathe Control Retrofits Automatic Turret start at $18,909.47.
Lathe Control Retrofits VTL - Call for quote.
Compare below.
Description
Industrial Motion Control
- Large 17" display showing real-time, virtual tool-path
- Rugged control enclosure; dust/liquid resistant
- Closed-loop, DSP Ethernet motion controller
- Perfect for industrial manufacturing, job shops, etc…
Control Software Features
- Intuitive Windows-style navigation Learn More...
- Standard Fanuc-style G-code programming; use your existing CAD/CAM
- Popular G-Codes G99, G98, G41-G42, G96 , G76
- ATC Electronic or Hydraulic, up to 2 Turrets Front, Back
- Subroutine and macro programming; user configurable M-codes
- Learn more & download a trial version…Learn More...
Integrated Canned Lathe/Turning Cycles Wizard
- Intuitive graphical interface for creating common operations: Turning, Rounding, Drilling, Facing, Grooving, Taper, Threading, Positioning, Custom Gcode
- Saved as job file; Add, remove, or modify any operation at any time.
- Import and export operations; Reuse common features in all your parts
- All operations visualized in operation tree; Change order or disable any operations
- Learn More...
Options
- Ready to bolt on, pre-wired enclosure for your system
- CNC spindle control with VFD ("spindle drive") up to 125HP
- Wi-Fi ready
- Touch Screen
- MPG Pendant
AC Servo Motor Options
- Digital AC system accelerate and decelerates faster than vintage DC analog servo systems
- Yaskawa servos with 20bit encoder
- Teco servos with 10k count encoder (We are the North American distributor for Teco servo products)
Easy to Install/Operate
- MachMotion Turnkey installation services, Guaranteed Power-up
- Install yourself with MachMotion Remote support team standing by
- One-time setup - Easily backup machine configuration
- Part File Import: Network access via Ethernet, to offices/other departments
FREE Control Support Included
- No charge for control support
- Remote login service included; we can see what you see
- Non-transferable
- One year warranty on all parts
Why MachMotion?
- Customer service and support is priority #1
- Direct seller; we're your single source for sales and support, no middle man
- US-based manufacturing, sales, service, and support
- Call us and speak to a live person, M-F 8-5 pm (Central)
Videos

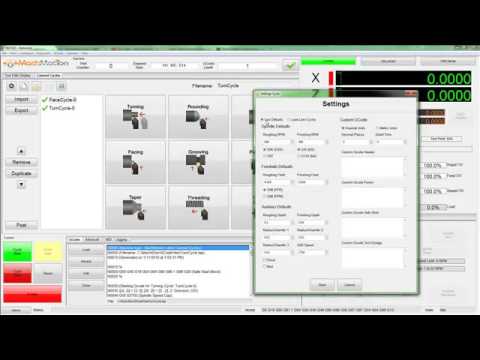

Lathe Canned Cycles
Mori Seiki SL3

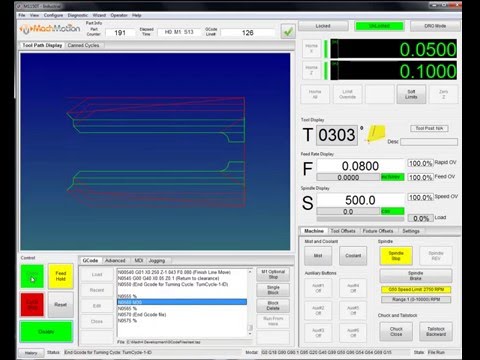

Control Demo

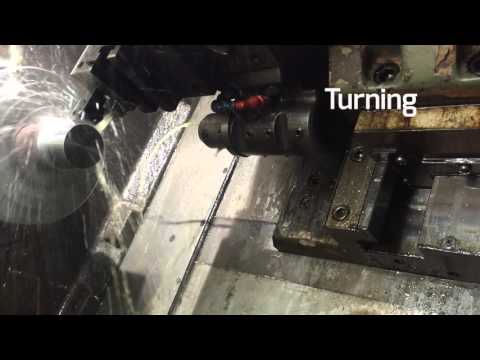

Customer Examples
Compare Options
Control System Comparison |
|
|
|
|---|---|---|---|
| Kit Model Number | KT-1150T-X4-MTP | KT-1150T-X4-AT | KT-1150T-X4-4223-0702 |
| Control Series | 1150T | 1150T | 1150T |
| Screen Size | 17" LCD Monitor | 17" LCD Monitor | 17" LCD Monitor |
| Touch Screen | No | No | No |
| Program Storage (Solid State HD) | 64GB | 64GB | 64GB |
| Processor | Intel I3 3.50 GHz | Intel I3 3.50 GHz | Intel I3 3.50 GHz |
| Block Processing Time | 1.5ms | 1.5ms | 1.5ms |
| Conversational Programming Included | No | No | No |
| Axis Supported | 2 & 1 Spindle | 2 & 1 Spindle | 2 & 1 Spindle |
| Servo Motors Included (# Axis) | N/A | N/A | N/A |
| Default Servo Size | N/A | N/A | N/A |
| Servo Encoder Resolution | N/A | N/A | N/A |
| Main Power Voltage | N/A | N/A | N/A |
| Inputs | N/A | N/A | N/A |
| Outputs | N/A | N/A | N/A |
| ATC-Auto Tool Changer PLC | N/A | N/A | N/A |
| Spindle Relay Outputs | N/A | N/A | N/A |
| Spindle Analog Output | N/A | N/A | N/A |
| Spindle Drive (VFD) Included | N/A | N/A | N/A |
| Pre-wired electrical enclosure included | N/A | N/A | N/A |
| 1 year warranty on parts | No | No | No |
| Lifetime Technical Support | No | No | No |
| Remote support via the internet | No | No | No |
| Estimated Installation | N/A | N/A | N/A |
| Normal Stock item | N/A | N/A | N/A |
| Starting At: | $9,226.87 | $18,909.47 | Call for Quote |
| Brochure | Brochure | Brochure |
Common CNC Turning Machines MachMotion has Helped Retrofit/Upgrade:
- CNC Controls: Allen Bradley, Accurite, Anilam, Bandit, Dynapath, Fanuc, Fagor, Siemens, Yasnac
- CNC Lathe Upgrades/Retrofits: Mori Seiki, Fadal, Haas, Bridgeport, Bostomatic, Milltronics, ProtoTrak, Tree, Hurco, Lucas, Pratt & Whitney, and many more...
Customizable open architecture software options are available. Call us to discuss your application.
Are you an OEM or custom machine builder? Ask about MachMotion's configurable operator screen, multi-named buttons, and graphic layout to give the operator customized user friendly experience. In addition we offer branding integration in the screen.
Documentation
Product Details Show All
| Control Series | 1150T |
|---|---|
| Screen Size | 17" LCD Monitor |
| Program Storage (Solid State HD) | 64GB |
| Processor | Intel 1.99GHZ |
| Block Processing Time | 1.5ms |
| CNC Control Size | 24" (W) X 15.5" (H) X 6.5" (D) |
| Operating System | Windows 7 Embedded (Win 7 Pro equivalent) |
| Power Requirements | 110-240 VAC operation |
| Keyboard | Waterproof, impervious to most anything including coffee and cleaning solutions. |
| Mouse | Trackball |
| Ethernet | Connect to your network and easily transfer files from the office to your computer |
| USB Ports | 1 External USB Port + 1 Internal |
| Operator Panel | X15-10-01 Operator Panel, with Jog Buttons, Axis Selector, Increment Selector, Jog Speed Selector, Cycle Start, Feed-hold and Emergency Stop Buttons. |
| Axis Supported | 2 & 1 Spindle |
